Paint Booth manufacturer: Introduction, Usage, Manufacturing, and Benefits

Introduction to Industrial Paint Booths

An industrial paint booth is an enclosed or semi-enclosed workspace designed for spray-painting applications in various industries. It ensures a controlled environment for efficient, high-quality painting while minimizing overspray, contamination, and hazardous emissions. Paint booths are essential for automotive, aerospace, furniture, and manufacturing industries, among others.

A paint booth (also known as a spray booth) is a controlled environment designed for painting surfaces, primarily used in industries where high-quality, uniform, and contamination-free paint application is required. It ensures proper ventilation, temperature control, and overspray containment, providing a safe and efficient workspace for painters.

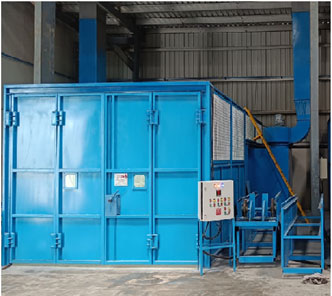

paint booth manufacturer in India
    How Does a Paint Booth Work?

    A paint booth operates by:

  1. Airflow Control – Filters air entering and exiting to prevent dust and debris from contaminating the paint job.
  2. Ventilation System– Removes hazardous fumes and overspray using exhaust fans.
  3. Lighting – Provides bright, shadow-free illumination for precision work.
  4. Overspray Collection – Uses filters (dry or water-wash) to trap excess paint particles.
  5. Temperature & Humidity Regulation – Ensures optimal drying conditions.
How to Use an Industrial Paint Booth?
  • Preparation – Ensure the workpiece is clean and free from dust.
  • Ventilation Setup – Turn on exhaust fans and filtration systems to maintain airflow.
  • Spray Painting – Apply paint using spray guns, ensuring even coating.
  • Drying/Curing – Use built-in heating systems (if available) or allow natural drying.
  • Cleanup – Remove overspray residues and dispose of hazardous waste properly.
    • Industries That Require Paint Booths
    Automotive Industry
  • Used for car refinishing, OEM painting, and collision repair.
  • Ensures glossy, bubble-free finishes.
    • Aerospace Industry
  • Critical for aircraft coating to prevent corrosion and ensure durability.
  • Requires high-tech, explosion-proof booths.
    • Industrial Manufacturing
  • Used for coating machinery, metal parts, and equipment.
  • Protects against rust and wear.
    • Furniture & Woodworking
  • Provides smooth finishes on wooden products (e.g., cabinets, doors).
  • Prevents dust from ruining paint jobs.
    • Marine Industry
  • Used for painting boats, ships, and marine equipment.
  • Resistant to moisture and salt corrosion.
    • Electronics & Appliances
  • Ensures even coating on electronic enclosures and home appliances.
    • Railway & Heavy Equipment
  • Used for painting trains, trucks, and construction machinery.

    • Types of Paint Booths

  • Crossdraft Booth– Air flows horizontally (front to back), cost-effective for small shops.
  • Downdraft Booth– Air flows top to bottom, best for high-quality finishes (used in automotive).
  • Semi-Downdraft Booth– Hybrid of crossdraft and downdraft.
  • Side-Draft Booth– Air enters from one side and exits the opposite (less common).
  • Open Face Booth– No enclosure, used for large objects with exhaust systems.
  • Bake (Curing) Booth– Includes heating for faster drying.

    • Manufacturing Process of Industrial Paint Booths

    Paint booths are typically made from:

  • Galvanized steel – (for durability)
  • Stainless steel – (for corrosion resistance)
  • Fiberglass – Apply paint using spray guns, ensuring even coating.

    • Benefits of Using Industrial Paint Booths

  • Improved Finish Quality – Controlled environment reduces dust and imperfections.
  • Worker Safety– Reduces exposure to toxic fumes.
  • Environmental Compliance– Filters harmful emissions, meeting regulations.
  • Efficiency– Faster drying and better paint utilization.
  • Cost Savings– Reduces paint waste and rework.

    • Countries Using Industrial Paint Booths

  • USA, Germany, Japan (Advanced manufacturing hubs)
  • China, India(Growing industrial sectors)
  • UK, France, Italy (Automotive & aerospace industries)
  • Middle East (UAE, Saudi Arabia)Increasing industrial investments

    • Conclusion

    Industrial paint booths are essential for achieving high-quality finishes while ensuring safety and environmental compliance. They are widely used across multiple industries globally, with continuous advancements in technology improving efficiency and sustainability.

    Paint Spray Booth

    Paint Booth Manufacturer in india is an investment that pays rich dividends by providing superior quality Finish, increase in productivity & better working conditions.

    Paint Spray Booth Manufacturer

    Design Types Of Paint Spray Systems Basic Design Types Of Dry Type Systems Having System Dry Type Paint Trap Filter With Intake Air Filter

    Front Open Paint Spray Booth System

    Open Type Paint Spray Booths With Wall Suction Type Design For Small Componets Or Fabricated Components Without Pit

    Down Draft Paint Spray Booth

    Finiprak fully Enclosed Down Draft Dry Type Paint Spray Booth are designed to provide efficient, flexible and clean spray painting. The health and explosion hazardous paint fume particles are sucked by partial vacuum created by centrifugal fan through filters. Thus air discharge into the atmosphere is clean and there is no sludge disposal as found in normal Wet Spray Booth. The design of the paint booth will be of vertical down draft type paint booth with disposable paint trap filters on floor. The intake air into the paint booth is filtered by intake filter to avoid foreign particle deposition on the painted surface. The intake air is sucked into the room by the extraction modules located on the floor

    Semi Down Draft Paint Spray Booth System

    Finiprak Fully Enclosed Semi Down Draft Dry Type Paint Spray Booth are designed to provide efficient, flexible and clean spray painting. The health and explosion hazardous paint fume particles are sucked by partial vacuum created by Exausht fan through filters. Thus air discharge into the atmosphere is clean and there is no sludge disposal as found in normal Wet Spray Booth.

    End Draft Paint Spray Booth System

    The End Draft (the direction of flow of air is towards the floor of spray booth) Paint Spray Booth is suitable for conventional, air-less and electrostatic spray painting and its consists of painting chamber, Inlet Air Filter, Paint Trap Filters, Exhaust Fan, electric motor, duct and canopy etc. The design of the paint booth will be of End Draft type paint booth with disposable paint trap filters on floor. The intake air into the paint booth is filtered by intake filter to avoid foreign particle deposition on the painted surface. The intake air is sucked into the room by the extraction modules located on the back wall.

    Water Curtain Type Paint Spray Booth System

    Paint Spray Booth with Water Curtain Type Wet Fume Collect is used for safe, healthy and quality spray painting. The health and explosion hazardous paint fume particles are sucked by the partial vacuum created by the exhaust fan through a curtain of water. Thus, air discharge into the atmosphere is clean and keep the working environment clean and friendly.
